| No. (序号) | Category (品种) | Type (品种) | Model No. (型号) | Configuration Parameter (配置参数) | |||
| 1 | Monitor (显示器） | PC Monitor （单显示器） | HP156-E10-A01 | Touch screen monitor,10 points capacitive touch screen, no host, wall mount(Optional for PC). Colors Optional: gold, black (触摸显示器, 10点电容屏,铝合金面框, 钣金后壳, 圆角, 全新LED液晶屏、不含电脑主机, 标配壁挂架（PC可自主选配） 可选颜色: 土豪金、黑色) | |||
| 2 | Android （安卓版） | Quad Core （四核） | HP156-E10-A08 | RK3188/RK3288 Quad-Core, 2G RAM, 8G ROM (RK3188/RK3288 四核, 2G内存，8G闪存) | |||
| 3 | Standard （标配） | 1037U | HP156-E10-A02 | Intel 1037U Celeron dual2G/32G SDD/Industrial Motherboard/power supply (Intel 1037U赛扬双核2G/32G固态硬盘/工业主板/专用电源) | |||
| 4 | Upgrade （标配升级版） | 1037U | HP156-E10-A024 | Intel 1037U Celeron dual4G/500G/Industrial Motherboard/power supply/WIFI (Intel 1037U赛扬双核4G/500G/工业主板/专用电源/无线WIFI) | |||
| 5 | Medium Class （中配） | I 3 | HP156-E10-A03 | Intel Conroe i3 dual 3.2G/4G/500G/H81/WIFI (Intel 酷睿i3 双核3.2G/4G/500G/H81/无线WIFI) | |||
| 6 | High Class （高配） | I 5 | HP156-E10-A05 | Intel Conroei5 Quad-Core 2.8G/4G/500G/H81/WIFI (Intel 酷睿i5 四核2.8G/4G/500G/H81/无线WIFI) | |||
| 7 | Supreme Class （超高配） | I 7 | HP156-E10-A07 | Intel Conroe i7 Quad-Core. 4G/8G/1TB/H81/WIFI (Intel 酷睿i7 四核.4G/8G/1TB/H81/无线WIFI) | |||
| Features (产品特点) | Structural Design(结构设计) | （1）Flat Structure,Ergonomic design, Slim Frame,Streamline Modelling,Sophisticated Craft (纯平面结构，人体工程学设计，纤巧美观、流线造型、工艺精良) | （2）Integrated systematic in displaying, touching and PC using, with only 42.9 mm thickness. (显示、触控、PC 系统一体化超薄设计,仅厚 42.9 mm). | |||||||||
| Using Effects(使用效果) | （1）Adopt the latest projected capacitive screen, it supports 10 points touch, available for both hand-writing and multi-points clicking. (采用点控最新研发的投射式电容屏，完美 10 点触摸，支持手写及多点手势)； （2）Response time is less than 3ms,high accuracy, easy for operation and maintenance. 触摸速度小于 3ms，精确度好，使用简单便捷、易于维护； （3）Anti-light interference, to ensure the accuracy during the process of operation(it can be used normally even under strong lights). 抗光干扰，确保操作的准确性（强光直射照常使用)； | |||||||||||
| Well Expanded(扩充性好) | Flexible configuration, can be expanded to install all accessories and functions based on customers' requirements; (配置灵活，可扩充安装客户需求的各种功能配件)； | |||||||||||
| High Security(安全性高) | Aluminium Alloy+Metal Plate, without sharp edge,wear-resisting and antiseptic baking technology, Whole Anti-riot function （铝合金+钣金结构，无锐利边缘，耐磨防腐烤漆工艺，整体防暴设计）； | |||||||||||
| Stable Performance(性能稳定) | Advanced design, Strict assembly technology, Stable quality, Low malfunction (先进的设计理念，严格的生产工艺，产品品质稳定可靠，故障率低)； | |||||||||||
| Easy to Install(安装简便) | On and Off controlled together by one button, free of installation and debugging (通电一键开关机，免除现场安装调试) | |||||||||||
| Systematic (系统设计) | VGA input output (VGA输入、输出 ) | External Computer VGA Input, Internal Computer VGA Output(Projector etc.) (外接电脑 VGA 输入，内部电脑 VGA 输出（投影仪等) | ||||||||||
| HDMI input output (HDMI输入、输出 ) | External Computer HDMI Input,Internal Computer Output (外接电脑 HDMI 输入，内部电脑 HDMI 输出) | |||||||||||
| Touch function (触摸功能 ) | Adopt the latest projected capacitive screen, it supports 10 points touch, available for both hand-writing and multi-points clicking. (全新投射式电容屏，10 点触摸，支持多点手势)； | |||||||||||
| Display (显示 ) | PC Full HD Signal 720P(PC 高清信号 720P) | 系统模块(Systematic) | PC, displaying, touching, On and Off controlled together by one button. PC、显示、触摸一体，一键开关机 | |||||||||
| PC Video Decoding (PC 视频解码) | 720P Full HD MPEG、H.264(720P高清 MPEG、H.264 等) | |||||||||||
| Design (结构设计) | All metal plate back case, high security, VESA wall mount optional,stand bracket optional. (全钣金后壳，安全系数更高，标配壁挂架，可选独立设计的底座) | |||||||||||
| Panel (液晶屏参数) | Screen Type(屏类型): | LED Backlight(LED 背光) LCD A Grade(液晶屏 A 规) | Number of Colors(色彩总数): | 16.7M(8-bit 2(LVDS)通道低压差分信号） | ||||||||
| Screen Size(尺寸): | 15.6 Inch (16:9) | Viewing Angle(可视角度): | (H:178° V:178°) (178水平 178 度 垂直 178 度) | |||||||||
| Viewing Area(显示区域): | 344 (H)×194 (V) | Working Life(使用寿命): | > 50000 Hours (大于50000小时） | |||||||||
| Resolution(分辨率): | 1366×768 | Contrast Ratio(对比度): | ≥ 5000:1 | |||||||||
| Brightness(亮度): | ≥ 250cd/m2 | Refresh Frequency(刷新频率): | 60Hz | |||||||||
| Response Time(响应时间): | < 5ms | |||||||||||
| Touch Panel (触摸屏参数) | Touch Mode(触摸技术): | Capacitive Touch Screen 投射式电容技术（电容触摸屏） | Electrical Current/Voltage (工作电流/电压) | 180Ma/DC+5V±5% | ||||||||
| Response Time(响应时间): | < 5ms | Anti-light Interference (抗光干扰) | Anti-light Interference: it can still work normally under the influence of sunlight, incandescent light, fluorescent light and some other strong lights. (抗光干扰 阳光、白炽灯、日光灯等强光变化时正常使用) | |||||||||
| Quantity of Touch Point(触摸点数): | Standard Configuration: 10 Touch Points, enlarging and shrinking images is availablle, it also supports multi-touch. (标配 10 点触摸,可实现放大缩小图片等多点触摸功能) | Data Output(触摸数据输出 方式) | Coordinate Output(坐标输出) | |||||||||
| Touch Identification Validity(触摸有效识别): | > 1.5mm | Surface Hardness(表面硬度) | Thermal Tempering, Morse magnitude 7 explosion-proof glass (物理钢化,莫氏 7 级防爆玻璃) | |||||||||
| Scanning Frequency(扫描频率): | 200Hz | Operating System Compatibility (操作系统兼容性) | Windows 7/ Windows 8/CE/Mac/Android/Linux /XP | |||||||||
| Scanning Accuracy(扫描精度): | 4096×4096 | Firmware(固件) | Update is available(可升级) | |||||||||
| Communication Code(通信方式): | High Speed USB 2.0, 3.0(全速 USB 2.0, 3.0) | Driver(驱动) | Plug and Play(免驱，即插即用) | |||||||||
| Theoretical Clicking Time(理论点击次数): | >50 Million Times Clicking (5000 万次以上) | |||||||||||
| Parameter of Display (显示参数) (仅做为触摸显示器部分使用) | Power Supply Interface(电源接口): | 12V | PC-AUDIO Input(PC-AUDIO 输入) | 1 | ||||||||
| Comb Filter(梳状滤波器): | 3D COMB filter to lower noise（3D 滤波降噪） | Earphone Output(耳机输出) | 1 | |||||||||
| VGA Input, (15 pins D-Sub) VGA 输入,(15 pinsD-Sub) | 1 | Power of Sound Output (声音输出功率) | 2*10W | |||||||||
| HDMI Interface(HDMI接口) | 1 | Quantity of Speaker(扬声器数) | 2 | |||||||||
| DVI Interface(DVI接口) | 1 | |||||||||||
| Power Supply Parameter (电源参数) | Input Power Supply(输入电源): | 220V AC 50/60Hz | Overall Power Consumption (整机功耗) | ﹤220W | ||||||||
| Output Power Supply(输出电源): | 12V 5A | Standby Power Consumption (待机功耗) | ﹤3W | |||||||||
| Operating Condition (工作环境) | Operating Temperature(工作温度): | 0℃-38℃ | Storage Temperature (贮存温度) | -40℃-85℃ | ||||||||
| Operating Humidity(工作湿度): | 0% - 90% | Storage Humidity (贮存湿度) | 10% - 95% | |||||||||
| Computer Parameter (电脑参数) | Options(方案) | Android (安卓) | X86 Standard(X86 标准版) | X86 Elite(X86 精英版） | X86 Luxury (X86 豪华版) | X86 Ultimate(X86 旗舰版) | OEM(客户定制) | |||||
| Chip(芯片) | Quadrupolar Core Processor RK3188 （四核 RK3188） | Intel Celeron(英特尔赛扬) | Intel Celeron (英特尔赛扬) | Intel I3 (英特尔 I 3) | Intel I3(英特尔 I5) | Customize is available according to clients' requirements. (按客户要求定制) | ||||||
| Dual Core Processor 1037U(双核 1037U) | 四核 J1900 | I7 Optional（可选 I7） | ||||||||||
| RAM(内存) | 2G | DDR3 2G/4G | 4G | DDR3 4G/8G | DDR3 4G/8G | |||||||
| Hard Disk(硬盘) | Flash Disk, allows to amplify (闪存 8G,可扩) | SSD 32G/500G | 64G/500G | 320G/500G | 500G/1T | |||||||
| Display Card(显卡) | Android HD | Integrated Display Card(集成显卡) | Nuclear of display (核显) | Nuclear of display(核显) | Nuclear of display(核显) | |||||||
| Definition(清晰度) | 720P/1080P | |||||||||||
| Operating System(操作系统) | Android4.2, | Multi-touch System(多点触摸): Windows 7/ Windows 8/Windows 10/ Android/Linux | ||||||||||
| Kernel Version（内核版本3.0.28） | Single Touch System(单点触摸): XP/CE/MAC | |||||||||||
| Network Adapter(网卡) | Integrated 10/100/1000M auto-adaptive Network Card(集成 10/100/1000M 自适应网卡), Wireless Network Card 802.11a/b/g/n(无线网卡 802.11a/b/g/n) | |||||||||||
| Power Supply Input(输入电源) | 220V AC 50/60Hz | |||||||||||
| Overall Power Consumption(整机功耗) | ﹤220W | |||||||||||
| Standby Power Consumption(待机功耗) | ﹤3W | |||||||||||
| Physical Specification (物理规格) | Screen Size(屏幕) | 15.6 inch (寸) Length of Diagonal: 394.93 mm (对角线 394.93 mm) | Dimension of Wall Mount Screw (壁挂螺丝规格) | M4 | ||||||||
| Viewing Area(有效显示尺寸) | 344*194 mm （16：9） | Dimension of Wall Mount Hole (壁挂孔) | 100*100mm | |||||||||
| Product Dimension整机尺寸（宽×高×厚） | 387（Width:宽）×231（Height:高）× 42.9（Thickness:厚）mm | N.W. (Product) 净重（裸机） | 触显 2.85kg，一体机 3.36 kg | |||||||||
| Packing Size包装尺寸（宽×高×厚） | 480（Width:宽）×260（Height:高）× 140（Thickness:厚）mm | G.W. (Package) 毛重（包装） | 4.5 kg | |||||||||
| Base Bracket(底架) | Standard Wall Mount Bracket标配壁挂架（N.W.: 0.6kg 净重 0.6kg), Pedestal is optional(可选配底座) | |||||||||||

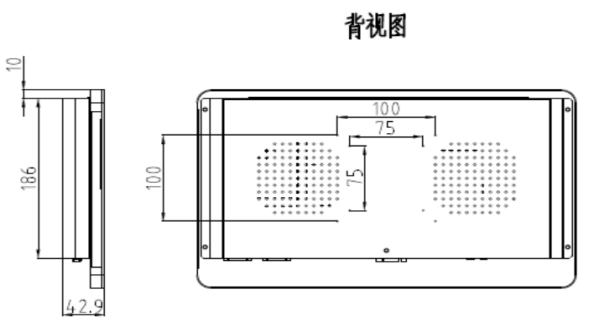

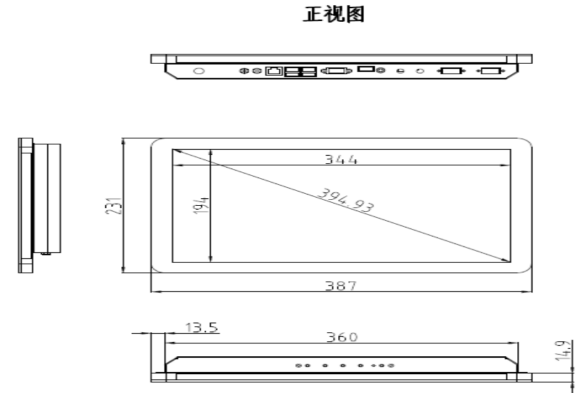

| Whole Structure (整机结构图) |  | |||||||||||
